Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: King Pigeon
  • Model Number: RTU5023
  • Usage: Auto
  • Name: GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm
  • Color: Black
  • Certificate: CE FCC RoHS SGS
  • Function: monitoring temperature and humidity
  • Battery: 12 DC
  • Material: mental enclosure
  • Backup battery: yes
  • GSM Frequency: Quad-band(850/900/1800/1900Mhz)
  • Language support: Chinese/English
  • Product name: gsm temperature monitoring

Packaging & Delivery

Packaging Details gsm sms temperature control alarm
Standard Package list of the GSM Environment Alarm:
GSM Environment Alarm X 1
GSM Antenna X 1
Backup Battery X 1 (Inbuilt)
AC/DC adaptor(12V1A) X1
User Manual X 1
Delivery Time 1
Product Description

Name:   Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm

Model: RTU5023

Scan the QR to download App of the  Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm



The Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm  is special for remotely monitoring onsite temperature, humidity, power status through wireless GSM Network. When the temperature, humidity, power voltage exceed high threshold or low threshold value, will send SMS alert to upto 10 preset mobile phone immediately.



The Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm   is special for remotely monitoring onsite temperature, humidity, power status through wireless GSM Network. When the temperature, humidity, power voltage exceed high threshold or low threshold value, will send SMS alert to upto 10 preset mobile phone immediately.



Just dial from Authorized User number, the Wireless GSM SMS Temperature Humidity Monitoring Control Alarm  will reject at the first “Ring”, no communication cost, and then return the current temperature, humidity, power status or voltage. Moreover, it can report onsite environment interval or daily.



The Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm   can be used for solar power monitoring, DC power voltage monitoring, temperature monitoring, humidity monitoring, Class Room, Public Room, Waiting Room, Hospital, Stations, Fresh Food Warehouse, Office, Meeting Room, Laboratory, Library and anywhere that need monitoring temperature or control temperature in expected range



Mainly Features of the Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm:



1.    Can be operated from anywhere, no distance limitation;



2.    No call charges for inquiry. the Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm  rejects the call from authorized number    then return onsite temperature, humidity, and power voltage on the first 'ring';



3.    Multiple applications. (temperature, humidity, power status, solar panel, dc voltage);



4.    Up to 10 authorized phone numbers, 5 can be used to receive call or SMS,and 5 can be used to call and SMS while alarm occurrence;



5.    One Temperature & Humidity sensor input, measures temperatures from -40-80°C,0.5°C accuracy, Relative Humidity from 0-99RH%, accuracy is 3%;



6.    External AC Power status monitoring, AC On/OFF will send SMS to authorized phone numbers;



7.    Inbuilt MCU monitoring the DC input Voltage value, measure range is 9-24VDC, no need additional sensor to save cost;



8.    Timer Report—Can setup every x hours automatically send its status/Value to the authorized numbers;



9.    Support remotely read historic data via SMS;



10. Rechargeable Backup Battery inside can last 8hours;



11. Secure - Using caller ID and password for identification, unknown callers are ignored;



12. Programmable by SMS Commands or APPs with password protection;



13. Based on GSM Network, applied to many applications.

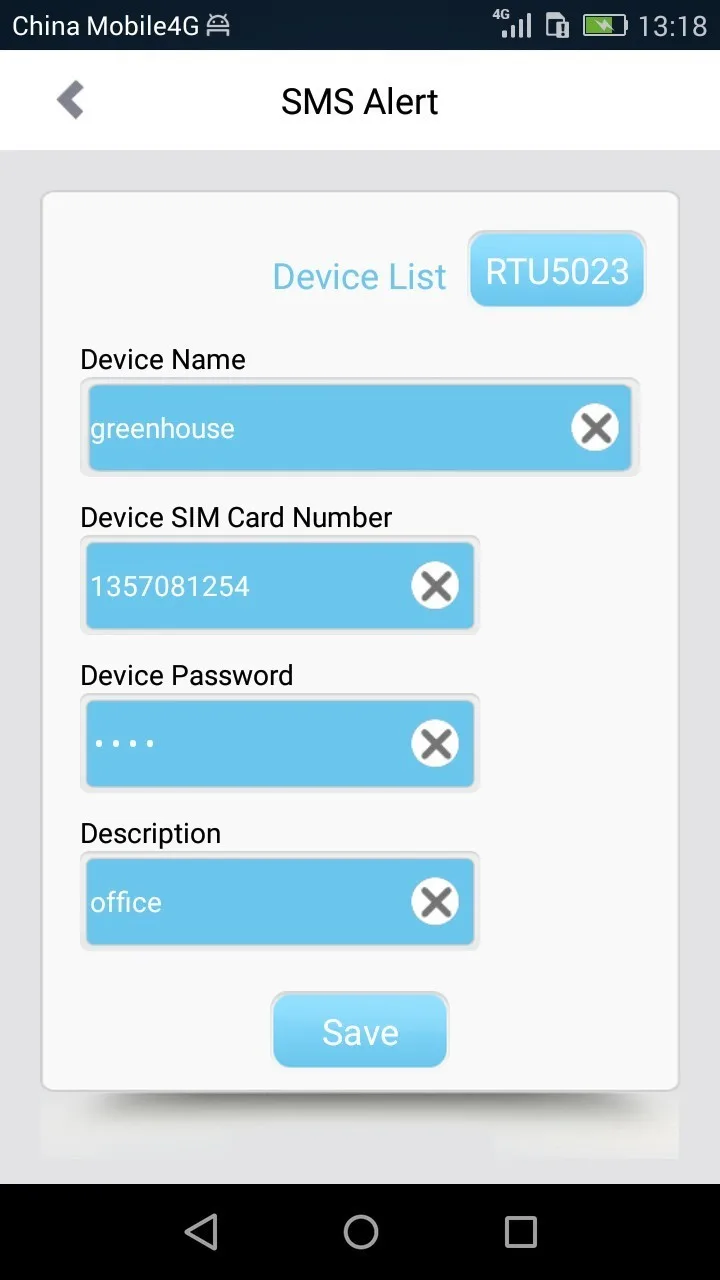

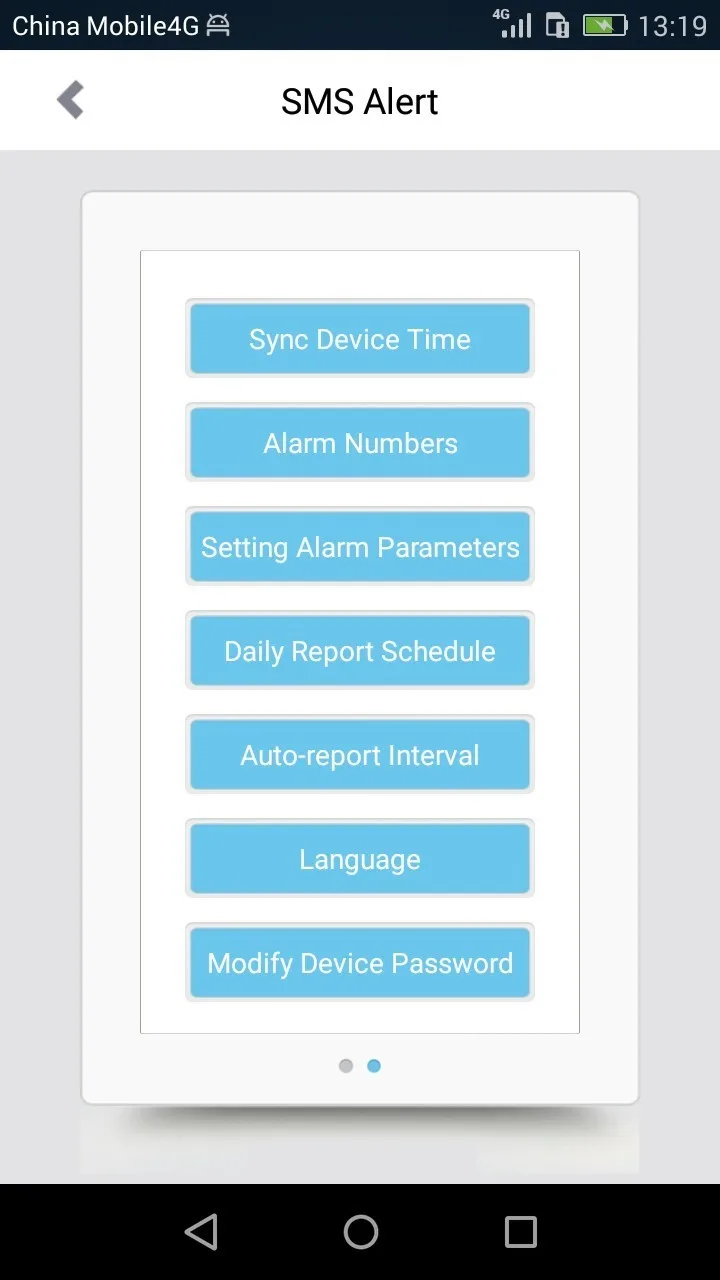

APP configuration and remote control:








Specifications of the Wireless GSM SMS Temperature Humidity Power Failure Monitoring Control Alarm:

Parameter item

Reference scope

DC Power supply

9~24VDC, recommend 12VDC1A

Power consumption

12V input  Max. 50mA/Average30mA

Frequency range

850/900/1800/1900Mhz

SIM Card

Supporting 3V SIM Card

Antenna

50 Ω SMA Antenna interface

Temperature range

-40-+80 °C

Humidity range

Relative humidity 0~90% (condensation free)

Temp&Humidity Sensor

Temperature&Humidity Sensor, Model :AM2301 ,Temperatures from -40-80°C(0.5°C accuracy),Relative Humidity from 0-99RH%, accuracy is 3%.

Backup Battery

900mAH, last 8hours

Exterior dimension

W130mm*D74mm*H27mm

Net Weight

300 g





Other temperature controller products:





Packaging & Shipping



Standard Package list of the GSM Environment Alarm:



GSM Environment Alarm X 1

GSM Antenna X 1

Backup Battery X 1 (Inbuilt)

AC/DC adaptor(12V1A) X1

User Manual X 1

Note: The package does not include any SIM card.

Optional:

AM2301   Temperature &Humidity Sensor, cable length 1m;

AM2305   Temperature &Humidity Sensor, cable length 5m;

AM2320   Temperature &Humidity Sensor, cable length 20m.



Our Services





Company Information



Why KING PIGEON?

King Pigeon is a professional GSM/GPRS/3G wireless Alarm System, GSM elderly alarm,SMS Controller, Industrial Remote Controller, RTU Data Logger, Telemetry, Temperature Measurement Logger, Power Monitoring, M2M products Designer & Manufacturer in China since 2005.



Welcome OEM/ODM Service



Put Your LOGO on Unit and Package Available!

FAQ



1.  How to make sure the quality?

  •  Process Quality Control
  •  Final Quality Control
  •  Outgoing Quality Control

2.  How to get the order?

  • First,Tell us the model and quantity of the products you want.
  • Second ,we will make a PI for you.
  • Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
  • Fourth, we will send you the goods within the promissory time.

3.  How about the Shipping?

  • The DHL,UPS,Fedex,TNT usually calculate the shipment based on measure size or weight. They compare the measurement size in Cube meters and Gross weight, and choose the large value to calculate the shipment cost.  (Calculation Formula is : L*W*H/5000=Measurement Size weight, unit is cm)



  •  Reference Shipment Cost

        For example, ship to Denmark from China.



Weight(Kg)

Shipment Cost

Average Cost for per Kg

0.5Kg

22.32USD



1Kg

28.27USD

28.27USD

16Kg

206.83USD

12.93USD

21Kg

147.13USD

7.00USD

31Kg

210.00USD

6.77USD

51Kg

316.00USD

6.20USD

101Kg

590.00USD

5.84USD

201Kg

1145.70USD

5.70USD



  •  Our recommends:

          For samples, ship by Express, usually 3-5days.

          While place small order, try to make the finial weight more than 21Kg.

          If the order weight less than 100Kg, recommend to ship them by Express.

          If the weight is 101kg~200kg recommend to ship them by Air-cargo or express;

          If the weight is above 200kgs, recommend to ship them by air cargo or by sea.

  • For small order by express, 20-30 pcs per order is the best.

4.  What's the delivery time?

  • Sample within 1-3days;
  •  Wholesales 4-7days according different quantities;
  •  OEM 7-14 days after all info confirmed.
  • ODM depends on the detail requirements.

5.  What is the warranty of your company?

  • 2~3 years warranty for the main unit; one year warranty for the accessories.
  • Please send back the defective goods within the warranty period, we will repair them or send you new free.
  • Please send to us some pictures and video about it need to confirm your problem then we will send you free new goods or parts instead.

6.   Can you do the design for us?


Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
